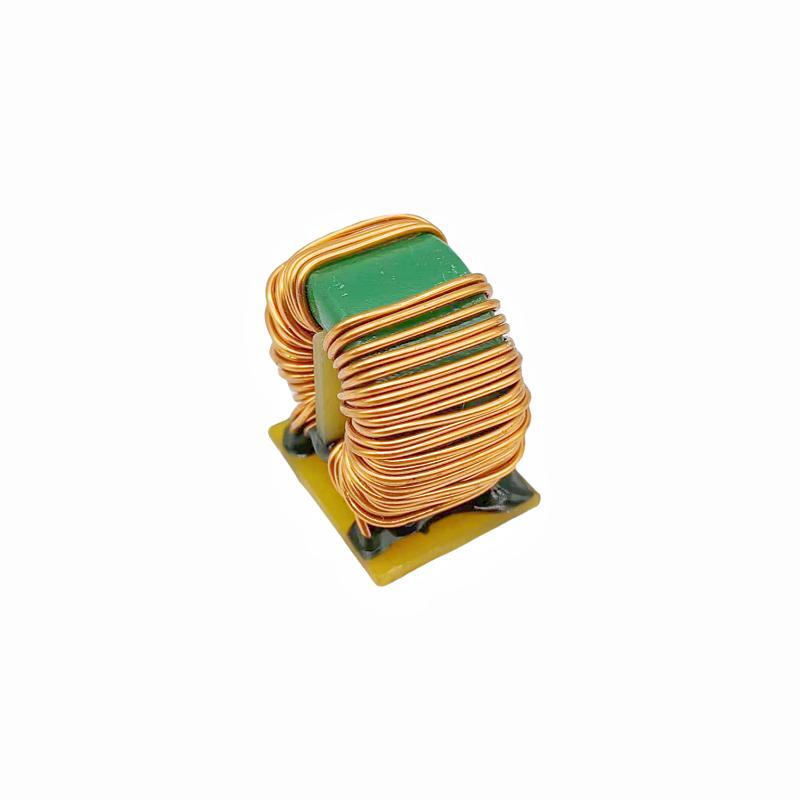

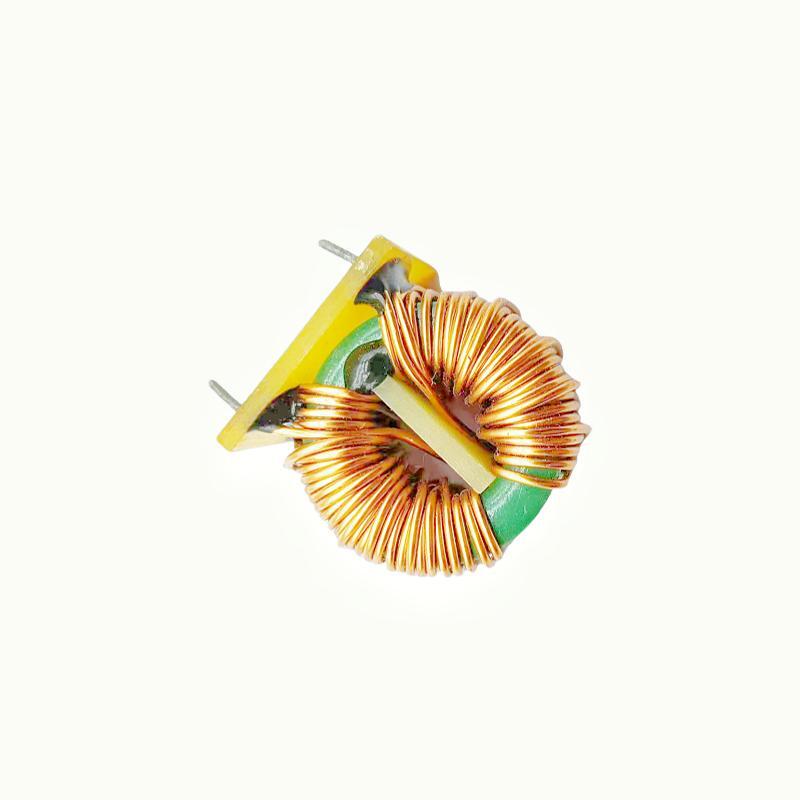

Mn-Zn Ferrite Coil Common Mode Choke Magnetic Loop Filter Copper
Wire Wound
1.Product Description
Copper Wire Magnetic Loop Filters are passive electronic components
based on the principle of electromagnetic induction, which are
mainly used for storing energy, filtering, tuning and suppressing
noise.
| Model Number | Common mode choke inductor |
| Material | Mn-Zn ferrite core,copper wire |
| Place of Origin | Guangdong, China |
| Brand Name | ZXY |
| Usage | PCB board |
| Lead way | Pins |
| DC Resistance (mΩ) | Customized |
| Parameters | Customized |
| Exports | Worldwide |
| OEM/ODM | Acceptable |
2.Specificities
1. Energy Storage Function
Copper Wire Magnetic Loop Filters are capable of storing energy in
the form of a magnetic field and releasing it when needed.
2.Filtering Function
Used in circuits to filter out high-frequency noise or smooth out
current, commonly used in power filters and signal filters.
3. Tuning Function
Used in conjunction with capacitors to tune circuits such as LC
oscillator circuits and RF circuits.
4. Suppress transient interference
Capable of suppressing transient voltage and current changes in
circuits to protect sensitive components.
5. Impedance characteristics
Exhibits inductive impedance (XL = 2πfL) to AC signals, the higher
the frequency, the higher the inductive impedance.
6. Low DC resistance (DCR)
Low resistance materials (e.g. copper wire) are used to minimize
energy loss.
7. High Q (Quality Factor)
High quality Copper Wire Magnetic Loop Filters with low loss and
high efficiency for high frequency applications.
8.Temperature Stability
High quality inductors with stable performance over a wide
temperature range.
9.Compact Design
Modern Copper Wire Magnetic Loop Filters are compact in design and
suitable for high density circuit boards.
