1R9 High Current Power Inductor Flat Line Inductor Patch Surface
Mount Inductor High Current Flat Coil Inductor
1.Company Profile
Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech
enterprise, specializing in customizing various types of audio
transformers, high frequency transformers, low frequency
transformers,switching power transformers, toroidal inductors,
choke coils, SMD power inductors, supper high current inductors and
wireless charging coils ,etc for customers.
Founded in 2011,our factory have two production bases in Huizhou
city,Guangdong province and Guang’an city,Sichuan province which
can produce 120 million inductors and transformers that meet the
environmental Protection requirements of ISO every year. Our
company equips with fully automatic
winding,soldering,assembling,testing machines,also some reliability
test equipments.
Our products are certified by UL,FCC,CE,RoHS,Reach and granted with
20 patents.These achievements mainly come from our strong R and D
team,providing solutions for temperature decreasing noise
cancellation and coupled radiation conductivity.
The products are widely used in High quality audio equipments,
audio conference room equipments,communication, medical electronic
equipments, automotive electronics, sports and fitness equipments,
beauty equipments,LED lighting,and consumer electronics etc.
2. Product Featurers
a. Entirely wrapped in UL heat shrinkable sleeve.
b. Large inductance range.
c.Magnetic shielded structure with low magnetic flux.
d.Flat wire coil for low losses at high frequency.
e.Leakage low DC resistance,support high-currents.
3.Product Size
| Mounting type | Surface mounting |
| Inductance value | 1-4.7uH Customizable |
| Size(Length X height) | 18MMX9MM |
| Current | 10-30A |
| Supplier type | Original manufacturer |
| Featurers | High current, low lseese |
| Shield | shielded |
| OEM/ODM | Acceptable |
4.Schematic Diagram
5.Application
(1).High current switching regulators,polyphase-switching
regulators;
(2).DC/DC converter;
(3).various power supplies,industrial machines,medical machines,
beauty machine,energy.
6.Comment
(1).Sampe order is available.
(2).Large quantity can be negotiated
(3).Customized orders (OEM/ODM orders) are available.
(4).Contact us for a list of available series.
7.How to order
(1).Please send me the sheet or part number you need.
(2).We will provide a replacement quotation for your reference.
(3).Free samples are available for your approval.
(4).After samples testing,we will enter bulk order.
(5).A proforma invoice will be sent to you for confirmation.
(6).After the goods finished,we will send the goods to you and tell
you the tracking number.
(7).We will track your shipment until you recive it.
8.Our service
(1).100% tested before shipment.
(2).Provide free samples.
(3).Provide customers with new designs

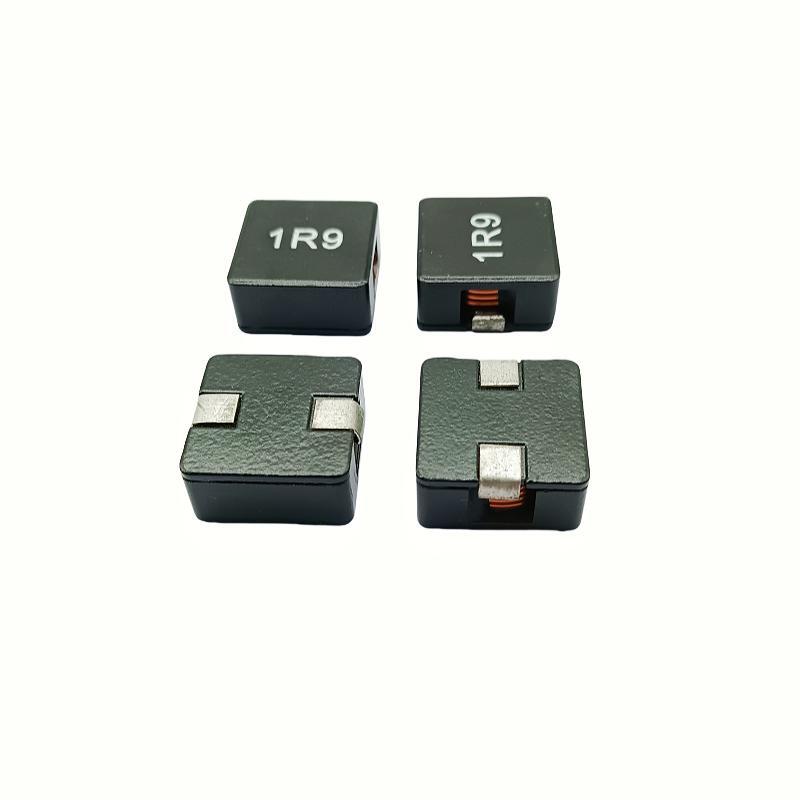

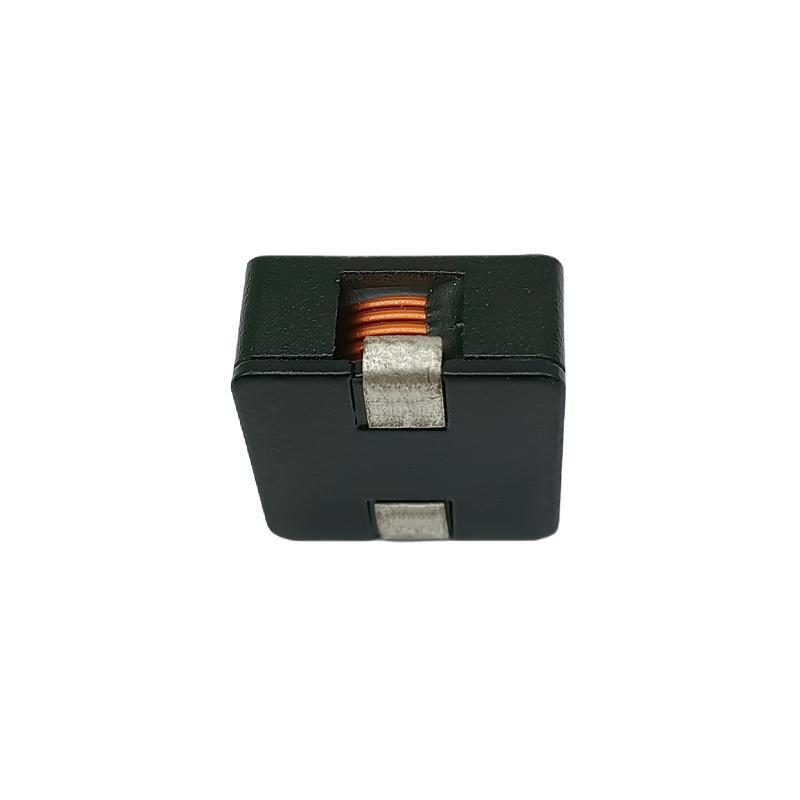

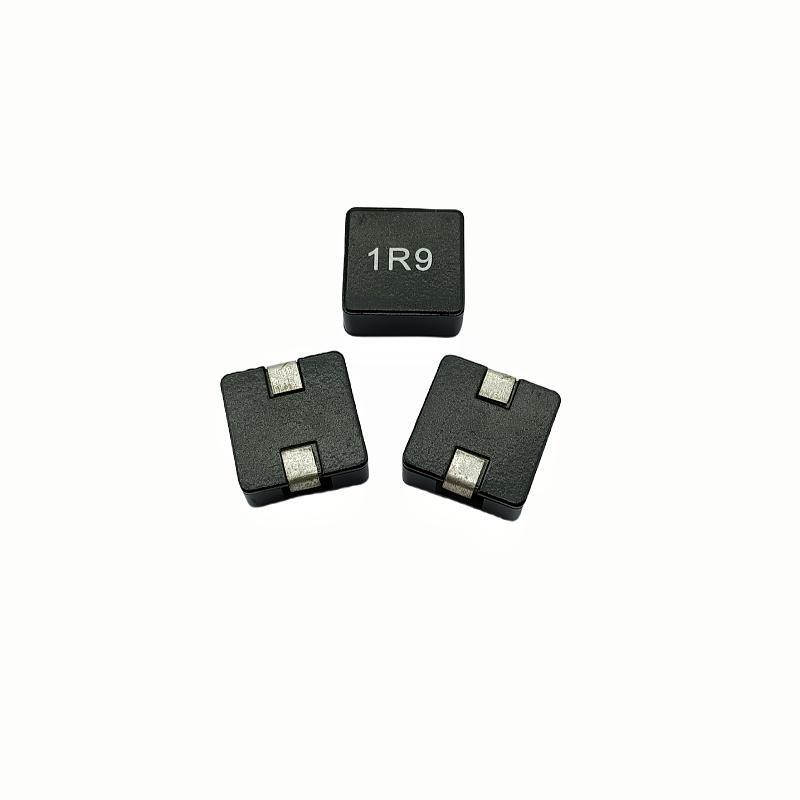

9.Product Pictures
_________________________________________________________________________________________
10.Other Recommended Produtcs
FAQ
Q1. Are you a trading company or a factory?
We are a factory, established in 2011, one of the leading companies
of inductors and transformers in China. An independent team of
engineers, advanced production and testing equipment, escort your
quality.
Q2. What is the delivery time?
There is stock for in-stock products. For customized samples, 5-10
days. For mass order, 15-30 days depends on quantity and stock of
raw materials.
Q3. What is your price?
Price depends on product specification, quantity, market factors. A
price list is available when contacting us.
Q4. Can you provide relevant documents?
Business licenses, ISO, SGS, RoHS certificates or export documents,
you can get everything you need to keep your money and goods safe.
Q5. What payment methods do you accept?
A bank account is preferred. Western Union, PayPal or other methods
are also acceptable.
