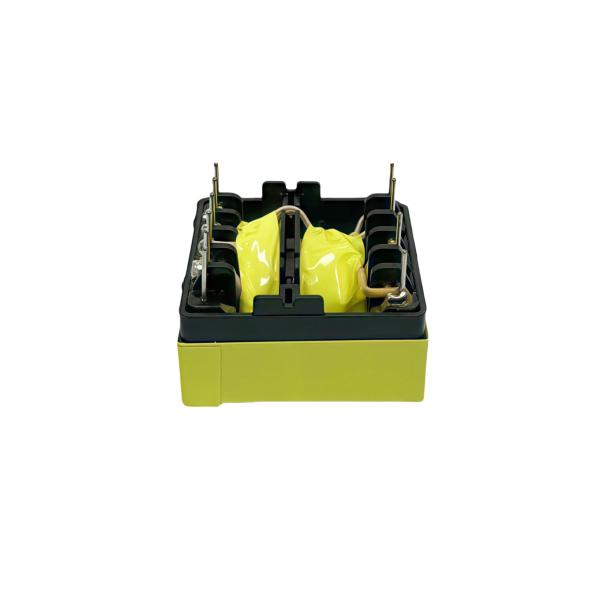

ETD34 Double Slot High Frequency Transformer Electronic Power Flyback Transformer

1.Product Description

The ETD34 Electronic Power Flyback Transformer is a crucial component in modern power electronics systems. It features an ETD34 - shaped core, typically made of high - quality magnetic materials like ferrite, which endows it with excellent magnetic properties. This core design enables efficient energy storage and transfer during the flyback operation. In terms of performance, it is specifically engineered for high - power applications, capable of handling substantial electrical currents and voltages. It plays a vital role in power supplies, especially in switch - mode power supplies. For instance, in laptop chargers, the ETD34 Flyback Transformer steps down the high - voltage AC input from the mains to a suitable DC voltage for the laptop. It does this by storing energy in the magnetic field during the on - time of the switching transistor and releasing it to the load during the off - time. This process allows for efficient power conversion with relatively high power density. Additionally, its design takes into account factors such as low - loss operation, minimizing power dissipation and heat generation, which is essential for the long - term reliability and stability of the power supply system. Its compact ETD34 size also makes it suitable for applications where space is at a premium, such as in small - form - factor electronic devices. Overall, the ETD34 Electronic Power Flyback Transformer combines high - performance magnetic characteristics, efficient power - handling capabilities, and compact design, making it an essential choice for a wide range of power - related applications.

2.Performance Characteristics

3.Other Recommended Produtcs

4.Company Profile

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers，switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL，FCC，CE，RoHS、Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in high quality audio equipments, audio conference room equipments，communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments，LED lighting，and consumer electronics etc.

We are committed to providing high quality coils, inductors, transformers and other products. We can also accept OEM and ODM orders. We sincerely welcome customers at domestic and oversea to visit and cooperate with us with high-quality products, preferential prices and excellent reputation.
