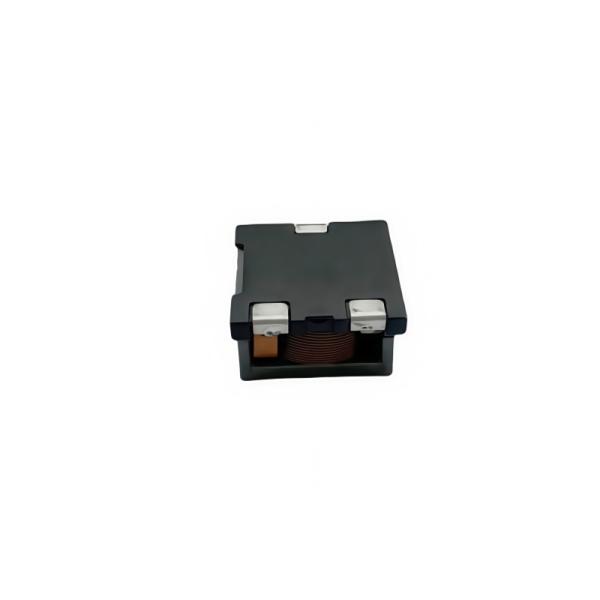

High Current Ferrite/MnZn Core Shielding Patch Wire-wound SMD Power Inductor

1.Product Description

Wire - wound SMD Power Inductors are highly efficient passive electronic components designed for surface - mount applications, playing a crucial role in power management circuits. These inductors are constructed with a wire wound around a magnetic core, often made of ferrite or iron - powder materials. The winding process, which can be either single - layer or multi - layer, is carefully executed to achieve specific inductance values. The use of high - quality wire, typically copper due to its excellent electrical conductivity, ensures low resistance and minimal power loss during operation. Their surface - mount design allows for easy integration into printed circuit boards (PCBs), saving valuable space and enabling more compact electronic device designs. In operation, Wire - wound SMD Power Inductors store energy in the form of a magnetic field when an electric current passes through the winding. This property makes them essential for functions such as filtering, energy storage, and voltage regulation in switching power supplies, DC - DC converters, and power - amplifier circuits. They are characterized by high saturation current capabilities, which means they can handle significant amounts of current without losing their inductance properties, making them suitable for high - power applications. Their relatively high inductance values, ranging from a few microhenries to several millihenries, enable them to effectively smooth out current ripples and provide stable power delivery in various electronic systems, from mobile devices and laptops to industrial equipment and automotive electronics.

2.Performance Characteristics

3.Other Recommended Produtcs

4.Company Profile

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers，switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL，FCC，CE，RoHS、Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in high quality audio equipments, audio conference room equipments，communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments，LED lighting，and consumer electronics etc.

We are committed to providing high quality coils, inductors, transformers and other products. We can also accept OEM and ODM orders. We sincerely welcome customers at domestic and oversea to visit and cooperate with us with high-quality products, preferential prices and excellent reputation.
