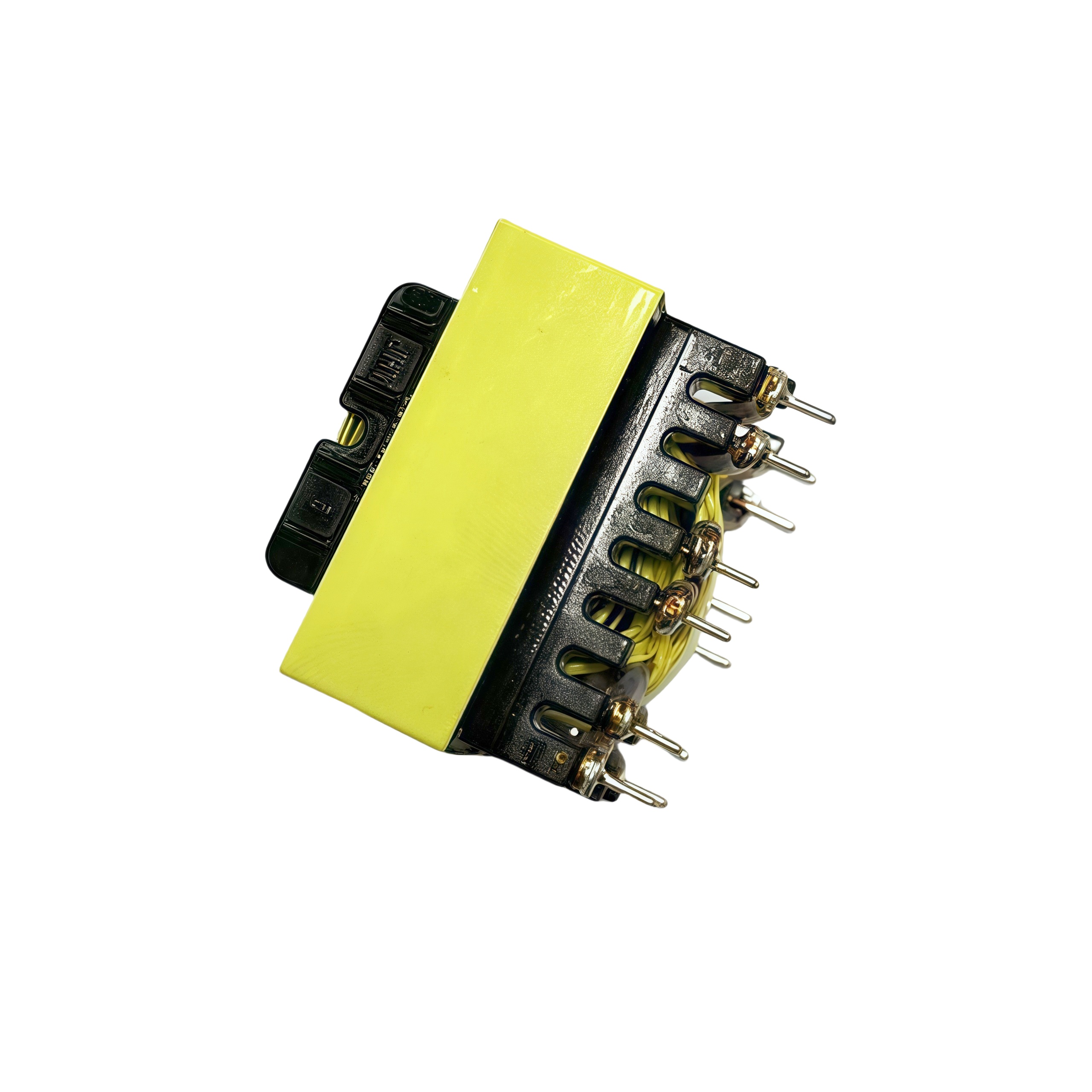

EC42 Magnetic Electric Power Transformer Ferrite Core High Frequency Transformer
1.Product Description
The EC42 Magnetic Electric Power Transformer with Ferrite Core is engineered for high-frequency applications from 100kHz to 1MHz, delivering exceptional efficiency up to 96% in compact power conversion systems. Its EC42 ferrite core (PC40/PC95 material) minimizes core losses at elevated frequencies, while the planar winding structure reduces skin effect and proximity losses, ensuring optimal performance in SMPS, LED drivers, and renewable energy inverters. With a power range of 100-1000W and isolation voltage of 3000VAC, it meets safety standards for industrial and automotive applications. The transformer’s low-profile design and thermal management features enable operation from -40°C to +125°C, making it ideal for space-constrained, high-reliability environments such as EV charging modules and telecommunications power supplies. Compliant with UL60950-1 and IEC62368-1, this transformer combines advanced magnetic materials with precision engineering to deliver reliable, efficient power conversion in high-frequency applications.
The EC42 Magnetic Electric Power Transformer with Ferrite Core High Frequency Transformer offers the following key features:
1.High-Frequency Operation
Optimized for 100kHz-1MHz switching frequencies, ideal for modern SMPS designs.
2.Ferrite Core Material
Uses PC40/PC95 ferrite for low core losses and high magnetic permeability at elevated frequencies.
3.High Efficiency
Achieves ≥96% conversion efficiency, reducing energy waste and thermal management requirements.
4.Compact Design
EC42 core size enables a smaller footprint compared to traditional low-frequency transformers.
5.Low Leakage Inductance
Precision-wound coils minimize leakage inductance (<1% of primary inductance), improving EMI performance.
6.High Power Density
Handles 100-1000W in a compact form factor, suitable for power-dense applications.
7.Wide Temperature Range
Operates reliably from -40°C to +125°C, with thermal management features to maintain performance.
8.Isolation Capability
Provides 3000VAC isolation, meeting safety requirements for industrial and automotive applications.
9.Planar Winding Technology
Reduces skin effect and proximity losses through optimized conductor geometries.
2.Features
| Feature | Description |
| Core Material | High-performance ferrite (e.g., Mn-Zn or Ni-Zn) for low losses at high frequencies. |
| Core Shape | EC42 (E-core with matching I-core), standardized size for compact power designs. |
| Frequency Range | Typically 20 kHz – 500 kHz+, suitable for SMPS, inverters, and resonant converters. |
| High Efficiency | Low core loss (low hysteresis/eddy current) and high permeability at high frequencies. |
| High Power Handling | Designed for medium-high power applications (dependent on winding and cooling). |
| Low Heat Generation | Ferrite’s low core loss reduces heat buildup compared to laminated iron cores. |
| Excellent Thermal Stability | Stable performance across a wide temperature range (e.g., -40°C to +120°C). |
| Customizable Windings | Primary/secondary turns can be tailored for specific voltage/current ratios. |
| Insulation | Class B (130°C) or higher insulation materials for reliability. |
| Applications | Switch-mode power supplies (SMPS), DC-DC converters, solar inverters, induction heating, etc. |

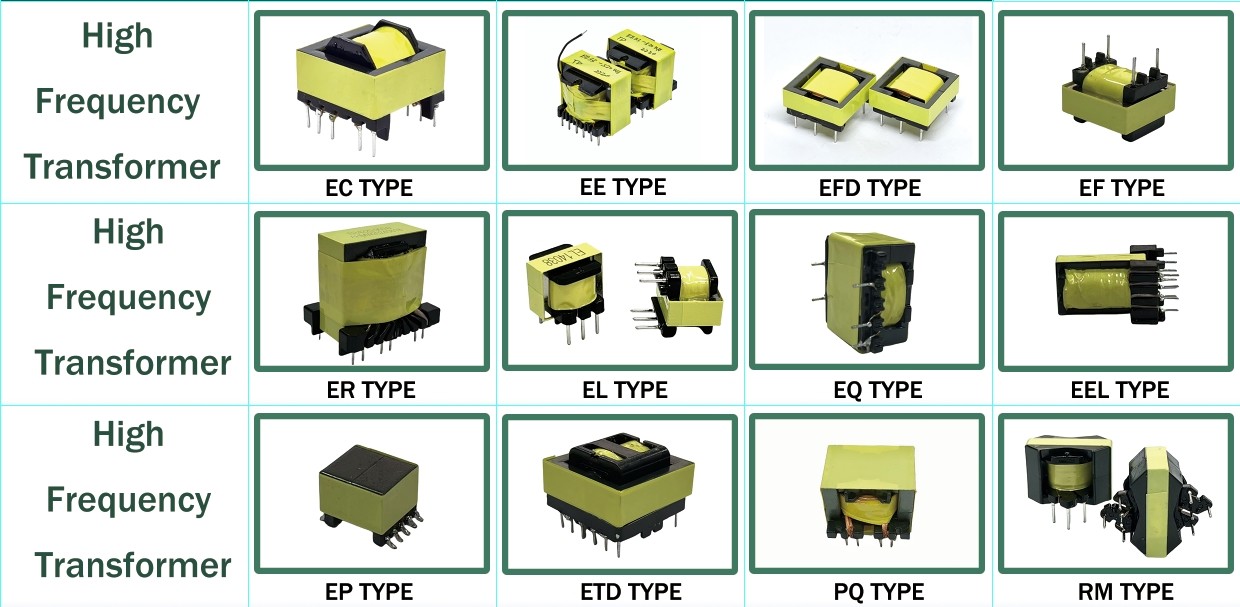

3.Other Recommended Produtcs
| Product Name | TYPE | Detailed Type |
| High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 |
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 |
| ETD | ETD29, ETD35, ETD40, ETD49 |
| EF | EF16, EF20, EF25 |
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 |
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 |
| EP | EP7, EP10, EP13 |
| EPC | EPC11.5, EPC13, EPC19, EPC25 |
| EQ | EQ2512, EQ2610, EQ3209, EQ4013, |
| POT | POT3016, POT3930 |
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 |
| RM | RM6, RM8, RM10, RM12, RM14 |
