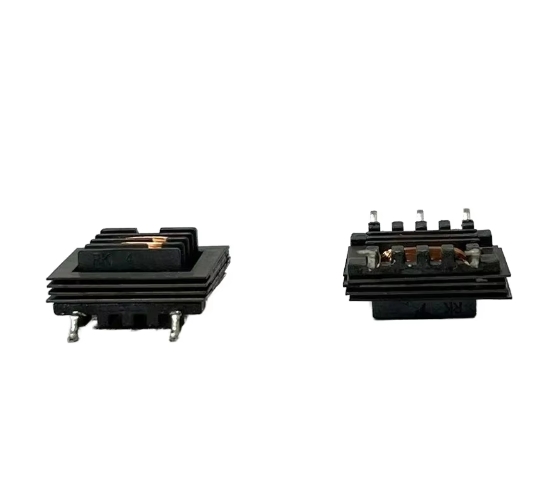

EFD Series EFD15 High Power High Frequency Transformer 15.8X14.8X7.3MM

1.Product Description

EFD15 High Power High Frequency Transformer is usually characterized by small size, low height, cheap price and high reliability, which is suitable for ultra-thin switching power supply. It has a flat ferrite core with a shape that simultaneously meets the requirements of high power and ultra-thin volume of the power transformer, and also adapts to the requirements of switching power supplies in terms of temperature rise. Therefore, EFD15 high-frequency transformers are widely used in the fields of DC-DC converters, drive transformers, digital cameras, step-up transformers, and handheld switching power supply chargers.

EFD15 High Power High Frequency Transformer are widely used in a variety of electronic devices:

1.DC-DC converters: used to convert one DC voltage to another.

2.Driver transformers: play the role of driving and isolation in the circuit.

3.Digital Camera: Provides a stable power supply to ensure the normal operation of the camera.

4.Step-up Transformer: Increases the voltage to meet the power needs of a specific device.

5.Handheld Switching Power Charger: Provides efficient and stable charging for various handheld devices.

2.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

3.Company Profile

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers，switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL，FCC，CE，RoHS、Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in high quality audio equipments, audio conference room equipments，communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments，LED lighting，and consumer electronics etc.

We are committed to providing high quality coils, inductors, transformers and other products. We can also accept OEM and ODM orders. We sincerely welcome customers at domestic and oversea to visit and cooperate with us with high-quality products, preferential prices and excellent reputation.
